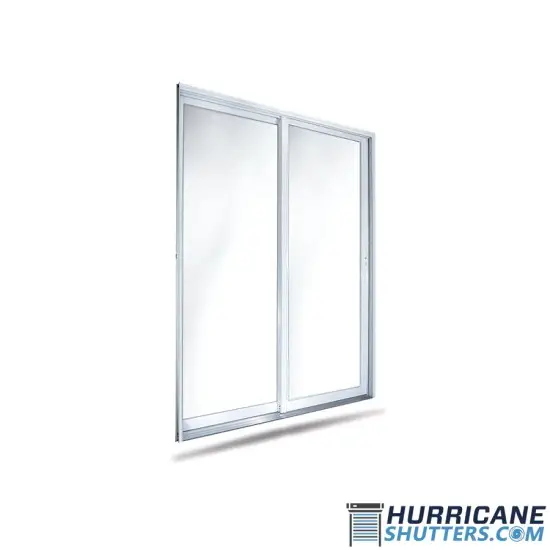

Lawson Hurricane Guard 9200 Series - Hurricane Impact Sliding Doors XO OX XX (Full View)
- Heavy-duty all (T6-6360 Grade) aluminum construction frame
- Block and tackle balances for easy sash / vent removal operation
- Extruded aluminum snap-on glazing provides a strong, clean, and neat appearance
- Extruded aluminum full-panel screen for maximum fresh air ventilation and durability
- Available in XO, OX, and XX panel configuration
- Tandem ball bearing rollers for effortless operation
- Mortise style door lock with “D” style pull handle on interior and low-profile pull handle on exterior
- Energy-efficient full perimeter sash
- Double lift rail on sash for ease of opening and closing
- Automatic latching sill locks for added safety and security – Meets (AAMA 1302.5-76) Forced Entry Resistance Code
- Profile extruded aluminum muntins
- Available in standard sizes and custom window sizes
- Available with clear, obscure, tinted laminated monolithic or energy-efficient insulated glass, including LowE 366 energy glazing
- Flange type frame for masonry construction or integral fin type frame for wood construction
- Available in 1/1,2/2, Brittany and Colonial Lite styles
- Available in White powder coat or Bronze ESP painted finishes
- Florida Large Missile Impact Code Rated (TAS-201,TAS-202, and TAS-203) Standards
- Meets FBC 2017 (Elite) Energy Codes
- Meets or exceeds Miami-Dade County NOA and FBC 2017 (HVHZ) Building Codes
- Building Codes for up to 5-story residential construction
- 20/20 Charcoal Insect Screen - Included
- X=Door O=Fixed Panel - XO Door Slide Right/Fixed Panel - OX Fixed Panel/Door Slide Left - XX Doors Slide Both Ways
product approval & installation instructions:
Specifications | |
Maximum Size | 96” x 96” |
Maximum Design Pressure | +67 / -95 PSF |
Glass Thickness / Type | 7/16” - Monolithic Annealed Glass (3/16" - .090 - 3/16") |
Frame Depth | 4 1/4” Sill |
Standard Sizes | 48" x 80", 60" x 80", 72" x 80", 96" x 80", 48" x 96", 60" x 96", 72" x 96", 96" x 96" |
File name | Size | Action |
Lawson - Sliding Door Tech Notes | 1.11MB | Download |
Lawson - Sliding Door Product Approval FL15441 NOA | 3.22MB | Download |
Lawson - Sliding Door Install Guide | 363.98KB | Download |
Lawson - Sliding Door Brochure | 221.41KB | Download |
Lawson - Glass Thermal NFRC Product Certification | 131.88KB | Download |
Showing 1 to 5 of 5 (1 Pages)
Lead Times:
Accordions: 2-3 Weeks
Bahamas / Colonials: (White) 3-4 Weeks / (Custom Color) 4-5 Weeks
Rolling Shutters: 2-3 Weeks
Rolling Screens: 3-4 Weeks
Clear Storm Panels: 7-14 Days
Storm Panels: 7-14 Days
Hurricane Fabric: 2-3 Weeks
Impact Windows / Doors: 4-6 Weeks
(May vary by material availability)
Sliding Impact Door Lawson 9200 Series XO OX XX (Full View)
- Stock: In Stock
- Brand: Lawson Windows
- Model: SGID-XX-9200F
- Weight: 85.00lb
- Dimensions: 72.00in x 4.00in x 80.00in
