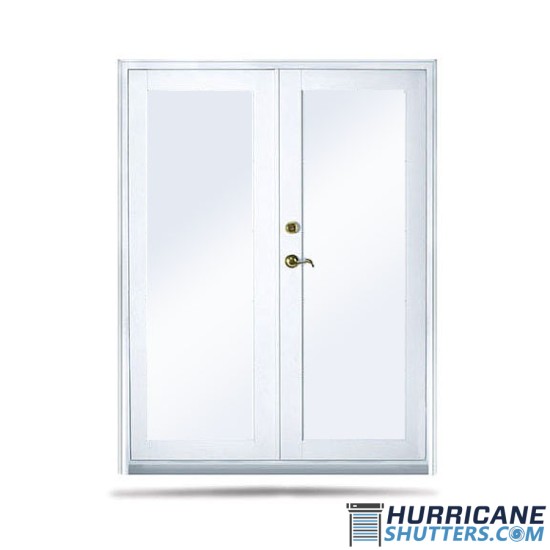

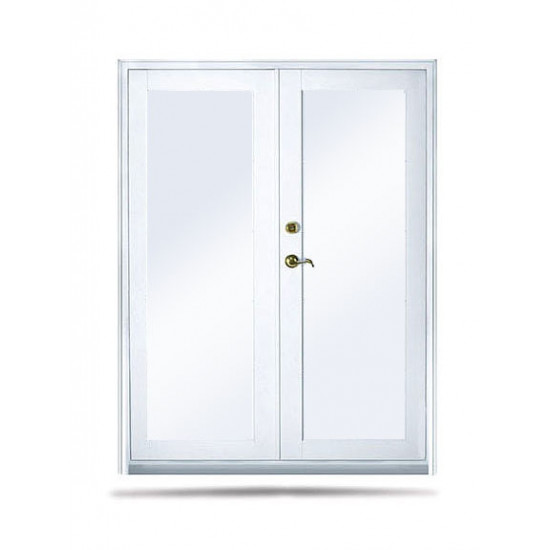

Lawson Hurricane Guard 2200 Series - Hurricane Impact French / Cabana Door XX (Full View)


  • Heavy-duty all (T6-6360 Grade) aluminum construction frame
  • Block and tackle balances for easy sash / vent removal operation
  • Extruded aluminum snap-on glazing provides a strong, clean, and neat appearance
  • Extruded aluminum full-panel screen for maximum fresh air ventilation and durability
  • Available in XO, OX, XX, OXXO panel / sidelite configurations
  • Tandem ball bearing rollers for effortless operation
  • Mortise style door lock with “D” style pull handle on interior and low-profile pull handle on exterior
  • Energy-efficient full perimeter sash
  • Double lift rail on sash for ease of opening and closing
  • Automatic latching sill locks for added safety and security – Meets (AAMA 1302.5-76) Forced Entry Resistance Code
  • Profile extruded aluminum muntins
  • Available in standard sizes and custom window sizes
  • Available with clear, obscure, tinted laminated monolithic or energy-efficient insulated glass, including LowE 366 energy glazing
  • Flange type frame for masonry construction or integral fin type frame for wood construction
  • Available in 1/1,2/2, Brittany and Colonial Lite styles
  • Available in White powder coat or Bronze ESP painted finishes
  • Florida Large Missile Impact Code Rated (TAS-201,TAS-202, and TAS-203) Standards
  • Meets FBC 2017 (Elite) Energy Codes
  • Meets or exceeds Miami-Dade County NOA and FBC 2017 (HVHZ) Building Codes
  • Building Codes for up to 5-story residential construction
  • 20/20 Charcoal Insect Screen - Included
  • X=Door O=Fixed Panel - XO Door Slide Right/Fixed Panel - OX Fixed Panel/Door Slide Left - XX Doors Slide Both Ways
     product approval & installation instructions:

French Impact Door Lawson 2200 Series XX (Full View) - Florida Product Approval

Specifications
Maximum Size 71 9/16" x 95 3/4"
Maximum Design Pressure +67 / -95 PSF
Glass Thickness / Type 7/16” - Monolithic Annealed Glass (3/16" - .090 - 3/16")
Frame Depth 4 1/2” Sill
Standard Sizes 47 9/16" x 79 3/4", 59 9/16" x 79 3/4", 63 9/16" x 79 3/4", 71 9/16" x 79 3/4", 59 9/16" x 95 3/4", 63 9/16" x 95 3/4", 71 9/16" x 95 3/4"
File name Size Action
Lawson - French Door - Product Approval FL15442 NOA 234.01KB Download
Lawson - French Door Woodgrain Brochure 2.57MB Download
Lawson - French Door Brochure 2.12MB Download
Lawson - French Door Tech Notes 737.26KB Download
Lawson - French Door Installation Guide 825.17KB Download
Showing 1 to 5 of 6 (2 Pages)

Lead Times:

Accordions:  2-3 Weeks
Bahamas / Colonials: (White) 3-4 Weeks / (Custom Color) 4-5 Weeks
Rolling Shutters:  2-3 Weeks
Rolling Screens:  3-4 Weeks
Clear Storm Panels:  7-14 Days
Storm Panels:  7-14 Days
Hurricane Fabric:  2-3 Weeks
Impact Windows / Doors:  4-6 Weeks
(May vary by material availability)

Write a review

French Impact Door Lawson 2200 Series XX (Full View)
  • Stock: In Stock
  • Brand: Lawson Windows
  • Model: FID-XX-2200F
  • Weight: 250.00lb
  • Dimensions: 72.00in x 5.00in x 80.00in
